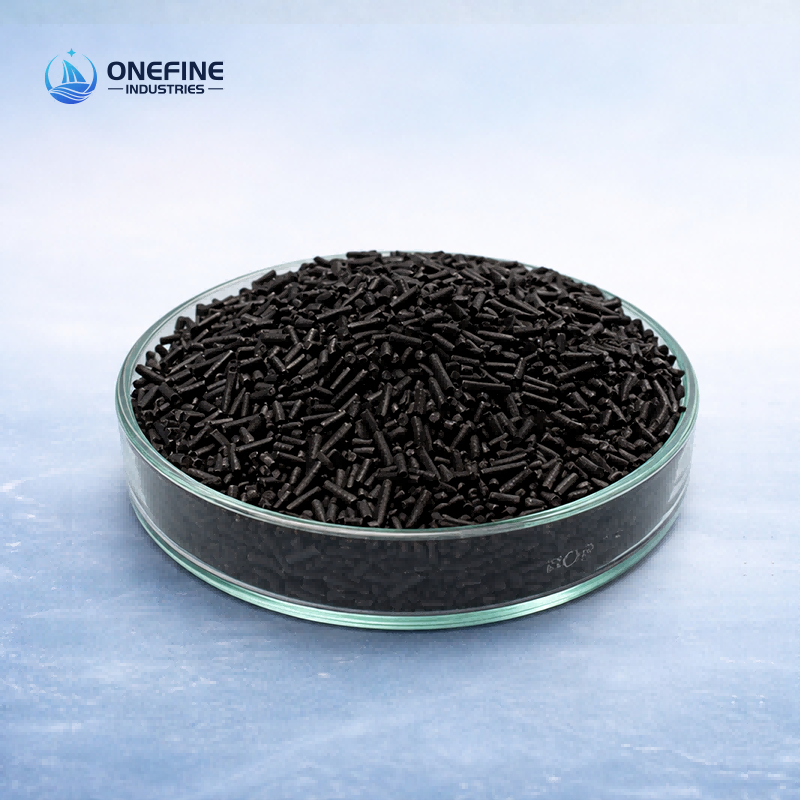

Carbon Molecular Sieve for N2

What is Carbon Molecular Sieve?

Carbon Molecular Sieve (CMS) is a high-performance carbon-based adsorbent specially designed for nitrogen generation from compressed air. It is widely used in PSA nitrogen generator systems (Pressure Swing Adsorption) to separate nitrogen (N₂) from oxygen (O₂) and other trace gases in the air.

Unlike traditional activated carbon, carbon molecular sieve has a precisely controlled pore structure that allows it to separate gases based on their molecular size and diffusion rate. In PSA nitrogen generation, oxygen molecules diffuse into the micropores of CMS faster than nitrogen molecules. As a result, oxygen is preferentially adsorbed, while nitrogen passes through as the product gas.

Because of its excellent nitrogen separation performance, high adsorption efficiency, long service life, and stable operation, carbon molecular sieve for nitrogen generation is the key adsorbent material in modern on-site nitrogen production systems.

CMS molecular sieve is widely used in industries such as:

• Food packaging
• Electronics manufacturing
• Laser cutting
• Chemical processing
• Pharmaceutical production
• Oil and gas
• Metal heat treatment
• Soldering and reflow
• Tire inflation
• Laboratory gas supply

For companies looking for reliable and cost-effective nitrogen gas generation, carbon molecular sieve is the preferred adsorbent solution.

Key Features of Carbon Molecular Sieve

1. Excellent Nitrogen Separation Performance

Carbon molecular sieve is engineered for efficient separation of nitrogen from compressed air in PSA systems. It can produce high-purity nitrogen by selectively adsorbing oxygen and allowing nitrogen to pass through.

This makes CMS for nitrogen generators ideal for:

• 95% nitrogen purity
• 99% nitrogen purity
• 99.5% nitrogen purity
• 99.9% nitrogen purity
• High-purity industrial nitrogen production

2. Fast Oxygen Adsorption Rate

The core advantage of carbon molecular sieve adsorbent is its ability to adsorb oxygen faster than nitrogen due to differences in diffusion speed. This allows:

• Fast PSA cycle times
• Higher nitrogen output
• Improved generator efficiency
• Lower energy consumption
• Stable nitrogen purity

3. High Nitrogen Yield

High-quality carbon molecular sieve for PSA nitrogen generation helps improve:

• Nitrogen recovery rate
• Nitrogen production capacity
• System stability
• Operational efficiency

This is especially important for industrial users seeking lower operating costs and higher ROI from their nitrogen generators.

4. Long Service Life

Premium CMS molecular sieve is manufactured with:

• High hardness
• Excellent wear resistance
• Low dust generation
• Strong resistance to pressure cycling
• Stable pore structure

This ensures a long operational life under repeated PSA adsorption and desorption cycles.

5. High Mechanical Strength

In PSA nitrogen generators, adsorbents are exposed to frequent pressure changes. Carbon molecular sieve with high compressive strength helps prevent:

• Particle breakage
• Powder formation
• Bed compaction issues
• Pressure drop increase
• Reduced separation efficiency

6. Energy-Efficient Nitrogen Production

A high-performance carbon molecular sieve adsorbent improves the overall efficiency of the PSA system, helping reduce:

• Compressed air consumption
• Power usage
• Maintenance frequency
• System downtime

This makes CMS for nitrogen generation a cost-effective choice for continuous industrial use.

Applications of Carbon Molecular Sieve

1. PSA Nitrogen Generation Systems

The most important application of carbon molecular sieve is in PSA nitrogen generators.

It is widely used in:

• Industrial nitrogen generators
• On-site nitrogen generation systems
• Skid-mounted nitrogen plants
• Compact nitrogen generators
• Containerized nitrogen generation units

2. Food Packaging Industry

Nitrogen gas is commonly used in food packaging to extend shelf life and protect product quality. Carbon molecular sieve for nitrogen generation supports nitrogen production for:

• Snack packaging
• Coffee packaging
• Tea packaging
• Dried food packaging
• Meat and seafood packaging
• Modified atmosphere packaging (MAP)

3. Electronics and Semiconductor Industry

In electronics manufacturing, nitrogen is used to reduce oxidation and improve process quality.

Applications include:

• SMT production lines
• Wave soldering
• Reflow soldering
• Semiconductor packaging
• PCB assembly
• Electronic component manufacturing

4. Laser Cutting Industry

High-purity nitrogen is widely used in laser cutting machines to:

• Prevent oxidation
• Improve cutting edge quality
• Increase cutting speed
• Reduce post-processing

CMS molecular sieve is an essential adsorbent in nitrogen generation systems for fiber laser cutting and sheet metal fabrication.

5. Chemical and Pharmaceutical Industry

Carbon molecular sieve supports nitrogen generation for:

• Inert gas blanketing
• Tank protection
• Chemical storage
• Solvent handling
• Pharmaceutical processing
• Oxygen-sensitive production environments

6. Oil & Gas and Metal Processing

Nitrogen generated by PSA nitrogen systems is used for:

• Pipeline purging
• Pressure testing
• Tank blanketing
• Fire prevention
• Heat treatment
• Annealing
• Brazing and soldering
• Protective atmospheres

Advantages of Carbon Molecular Sieve Over Other Adsorbents

Compared with conventional adsorbents such as activated carbon or general carbon materials, carbon molecular sieve offers significant advantages in gas separation:

• Designed specifically for nitrogen generation
• Precise micropore structure for air separation
• Faster oxygen adsorption
• Higher nitrogen purity
• Better nitrogen recovery
• Longer service life in PSA systems
• Lower dust and better mechanical strength
• Improved energy efficiency
• Stable performance under pressure cycling

For PSA nitrogen plants, carbon molecular sieve is the core material that directly affects nitrogen purity, flow rate, and operating cost.

Available Forms of Carbon Molecular Sieve

To meet different PSA nitrogen generator designs, carbon molecular sieve is usually available in the following forms:

• Pellets
• Cylindrical extrudates
• Granules (for certain custom systems)

Common Sizes

• 1.0 mm
• 1.2 mm
• 1.5 mm
• 1.8 mm
• 2.0 mm
• Custom sizes available

The ideal particle size depends on:

• Nitrogen purity requirement
• PSA cycle speed
• Adsorption tower design
• Air compressor capacity
• Pressure drop limits
• Generator manufacturer specifications

Typical Technical Specification of Carbon Molecular Sieve

Below is a typical reference specification for carbon molecular sieve for nitrogen generation:

• Product Name: Carbon Molecular Sieve (CMS)
• Application: PSA Nitrogen Generation
• Shape: Pellet / Cylindrical
• Particle Size: 1.0–2.0 mm
• Bulk Density: 0.64–0.72 g/ml
• Compressive Strength: High
• Dust Content: Low
• Moisture Content (as packed): ≤ 1.0%
• Nitrogen Purity Range: 95%–99.999% (system dependent)
• Service Life: Long cycle life under proper operation
• Packaging: 20 kg / 25 kg steel drums, cartons, or custom packaging

Note: Technical data may vary depending on CMS grade, nitrogen purity target, PSA design, and operating conditions.

How Does Carbon Molecular Sieve Work in PSA Nitrogen Generators?

The working principle of carbon molecular sieve in PSA nitrogen generation is based on kinetic separation.

Step-by-step process:

1. Compressed air enters the adsorption tower filled with carbon molecular sieve.
2. Oxygen, carbon dioxide, and moisture are preferentially adsorbed.
3. Nitrogen molecules diffuse more slowly and pass through the adsorbent bed.
4. High-purity nitrogen gas is collected as the product gas.
5. When the adsorbent bed becomes saturated, the pressure is reduced.
6. The adsorbed gases are desorbed and released.
7. The system switches towers and repeats the cycle.

This continuous PSA process allows on-site nitrogen production without the need for liquid nitrogen delivery or high-pressure gas cylinders.

Why Choose Carbon Molecular Sieve for Nitrogen Generation?

If your application requires:

• stable on-site nitrogen production
• high nitrogen purity
• low operating cost
• energy-efficient gas separation
• reliable PSA performance
• long adsorbent service life
• reduced downtime and maintenance

then carbon molecular sieve (CMS) is the ideal adsorbent.

It is especially recommended for:

• PSA nitrogen generators
• industrial nitrogen plants
• laser cutting nitrogen systems
• food packaging nitrogen supply
• electronics manufacturing nitrogen systems
• chemical and pharmaceutical inerting systems
• oil & gas nitrogen generation units

Choosing a reliable carbon molecular sieve manufacturer and supplier is essential to achieving stable nitrogen purity, better nitrogen recovery, and lower system operating costs.

Frequently Asked Questions (FAQ)

What is carbon molecular sieve used for?

Carbon molecular sieve is mainly used for:

• PSA nitrogen generation
• air separation
• nitrogen gas production
• industrial nitrogen generators
• on-site nitrogen generation systems

How is carbon molecular sieve different from activated carbon?

Although both are carbon-based materials, carbon molecular sieve has a highly controlled micropore structure designed for gas separation, especially oxygen and nitrogen separation. Activated carbon is mainly used for purification, odor removal, and general adsorption rather than precise nitrogen generation.

What nitrogen purity can carbon molecular sieve achieve?

Depending on the CMS grade, PSA system design, and operating conditions, carbon molecular sieve can support nitrogen purity levels ranging from 95% to 99.999%.

How long does carbon molecular sieve last?

High-quality CMS for nitrogen generators can offer a long service life under proper operating conditions, including clean compressed air, correct pressure cycling, and proper system maintenance.

Can carbon molecular sieve be used in PSA nitrogen plants?

Yes. In fact, PSA nitrogen generation is the primary and most important application of carbon molecular sieve.
