Molecular Sieve 5A

What is Molecular Sieve 5A?

Molecular Sieve 5A is a synthetic crystalline calcium sodium aluminosilicate with a uniform pore size of approximately 5 angstroms (0.5 nm). It is produced by ion exchange of the sodium ions in Molecular Sieve 4A with calcium ions, which enlarges the pore opening and expands its adsorption capability.

Thanks to its precise pore structure, 5A molecular sieve can selectively adsorb molecules with critical diameters smaller than 5 Å, including water, carbon dioxide, hydrogen sulfide, sulfur dioxide, normal paraffins, and certain light hydrocarbons, while excluding larger branched or aromatic hydrocarbons. This makes it highly effective for deep moisture removal, gas purification, hydrocarbon separation, and pressure swing adsorption (PSA) systems.

Compared with conventional desiccants such as silica gel or activated alumina, Molecular Sieve 5A offers higher adsorption capacity, faster adsorption rates, strong regeneration performance, and excellent selectivity in both gas and liquid phase applications.

Key Features of Molecular Sieve 5A

1. Uniform 5 Angstrom Pore Size

The 5A pore opening allows adsorption of molecules smaller than 5 Å, making it suitable for:

• Water (H₂O)
• Carbon dioxide (CO₂)
• Hydrogen sulfide (H₂S)
• Sulfur dioxide (SO₂)
• Ammonia (NH₃)
• Normal paraffins (n-paraffins)
• Certain light hydrocarbons

This selective adsorption capability makes Molecular Sieve 5A ideal for molecular separation and industrial purification processes.

2. Excellent Water Adsorption at Low Humidity

Like other molecular sieves, 5A molecular sieve desiccant maintains strong adsorption performance even under low relative humidity and low partial pressure conditions, making it highly effective for deep dehydration.

3. Selective Separation of Normal and Iso-Paraffins

One of the most important advantages of Molecular Sieve 5A is its ability to separate normal paraffins from branched-chain and cyclic hydrocarbons, making it widely used in the petroleum and petrochemical industries.

4. Fast Adsorption Kinetics

Its uniform pore distribution and large internal surface area allow rapid adsorption, helping improve system efficiency and reduce cycle times in industrial drying and separation units.

5. Reusable Through Regeneration

Molecular Sieve 5A can be regenerated by thermal desorption or pressure swing adsorption (PSA), reducing operating costs and extending service life.

6. Strong Thermal and Mechanical Stability

This adsorbent is highly stable under demanding industrial conditions, with good resistance to temperature fluctuations, moisture cycling, and mechanical stress.

Applications of Molecular Sieve 5A

1. Natural Gas Dehydration and Purification

Molecular Sieve 5A is widely used in natural gas drying to remove:

• Water vapor
• Carbon dioxide
• Hydrogen sulfide
• Sulfur compounds

It helps protect pipelines and processing equipment from:

• Corrosion
• Hydrate formation
• Freezing
• Reduced gas quality

2. Hydrocarbon Separation

A key application of 5A molecular sieve is the separation of:

• Normal paraffins from iso-paraffins
• Straight-chain hydrocarbons from branched hydrocarbons
• Specific hydrocarbon fractions in refining processes

This makes it essential in petroleum refining, isomerization feed purification, and petrochemical separation units.

3. PSA Oxygen and Hydrogen Systems

Molecular Sieve 5A is commonly used in pressure swing adsorption (PSA) systems for:

• Oxygen generation
• Hydrogen purification
• Air separation pretreatment
• Gas purification units

It helps remove moisture and other impurities, improving adsorption bed efficiency and extending equipment life.

4. Drying of Industrial Gases

It is suitable for drying a variety of industrial gases, including:

• Hydrogen
• Nitrogen
• Oxygen
• Air
• Syngas
• Cracked gas

5. Solvent and Liquid Phase Drying

5A molecular sieve desiccant can also be used for liquid dehydration, especially in processes where deep drying and selective adsorption are required.

6. Refrigeration and Specialty Systems

In some specialty applications, Molecular Sieve 5A is used in refrigeration circuits, sealed systems, and industrial drying assemblies where higher selectivity is needed.

Advantages of Molecular Sieve 5A Over Other Desiccants

Compared with silica gel, activated alumina, and clay desiccants, Molecular Sieve 5A provides several important benefits:

• Higher adsorption capacity for water and small molecules
• Excellent deep drying performance at low humidity
• Selective adsorption for molecular separation
• Ability to separate normal paraffins from branched hydrocarbons
• Faster adsorption speed
• Low residual moisture after drying
• Stable performance under high temperatures
• Regenerable and reusable
• Suitable for critical gas purification and PSA applications

For industrial systems that require deep dehydration, gas purification, or hydrocarbon separation, 5A molecular sieve is one of the most effective and reliable adsorbents available.

Available Forms of Molecular Sieve 5A

To meet different industrial process requirements, Molecular Sieve 5A is commonly supplied in the following forms:

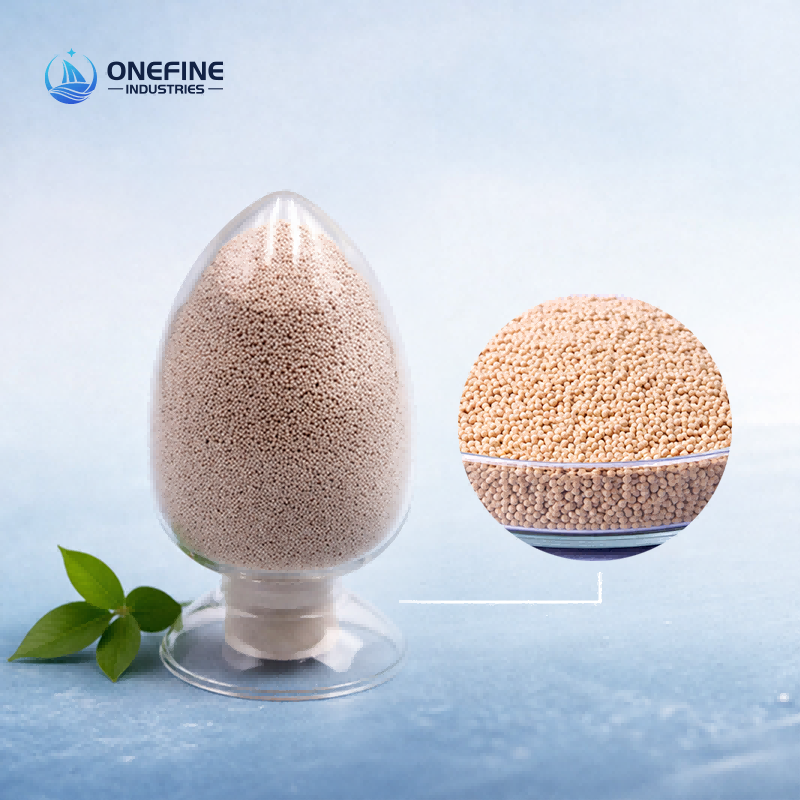

• 5A molecular sieve beads
• 5A molecular sieve pellets

Common Sizes

• 1.6–2.5 mm
• 3.0–5.0 mm
• 4.0–6.0 mm
• 1/16" pellets
• 1/8" pellets

The appropriate particle size depends on:

• Bed design
• Gas or liquid flow rate
• Pressure drop limitations
• Adsorption cycle conditions

Typical Technical Specification of Molecular Sieve 5A

Below is a typical reference specification for Molecular Sieve 5A beads:

• Type: Calcium sodium aluminosilicate
• Pore Size: 5 Å
• Shape: Beads / Pellets
• Bulk Density: ≥ 0.68 g/ml
• Static Water Adsorption: ≥ 21%
• Crush Strength: Depends on particle size
• Attrition Loss: Low
• Moisture Content (as packed): ≤ 1.5%
• Regeneration Temperature: 200–300°C (depending on system design and operating conditions)

Note: Product specifications may vary based on grade, application, and customer requirements.

How Does Molecular Sieve 5A Work?

The adsorption mechanism of Molecular Sieve 5A is based on selective physical adsorption. Its uniform 5-angstrom pore openings act as a molecular filter, allowing only molecules smaller than 5 Å to enter the internal crystal structure and be retained by strong adsorption forces.

Because of this structure, 5A molecular sieve can:

• remove moisture from gases and liquids
• adsorb CO₂ and sulfur compounds
• purify industrial gas streams
• separate normal paraffins from branched hydrocarbons
• support PSA and molecular separation systems

This combination of deep drying and molecular selectivity makes it highly valuable in advanced industrial adsorption processes.

Why Choose Molecular Sieve 5A for Industrial Applications?

If your process requires:

• deep moisture removal
• gas purification
• hydrocarbon separation
• PSA system efficiency
• selective adsorption of small molecules

then Molecular Sieve 5A is an ideal choice.

It is especially suitable for:

• natural gas dehydration
• petroleum refining
• normal paraffin separation
• hydrogen purification
• oxygen generation systems
• industrial gas drying
• specialized solvent dehydration

By choosing a reliable Molecular Sieve 5A manufacturer and supplier, you can improve process stability, reduce moisture-related failures, and optimize adsorption system performance.

Frequently Asked Questions (FAQ)

What is the difference between Molecular Sieve 4A and 5A?

The main difference is the pore size and adsorption range:

• Molecular Sieve 4A: 4 angstrom pore size, mainly adsorbs water and smaller molecules such as methanol, ethanol, and ammonia.
• Molecular Sieve 5A: 5 angstrom pore size, adsorbs larger small molecules and is especially useful for normal paraffin separation, CO₂ removal, and gas purification.

Can Molecular Sieve 5A be regenerated?

Yes. Molecular Sieve 5A can be regenerated by heating or pressure swing methods, making it a reusable and cost-effective industrial adsorbent.

What is Molecular Sieve 5A used for?

It is widely used for:

• natural gas drying
• hydrocarbon separation
• PSA oxygen systems
• hydrogen purification
• industrial gas dehydration
• molecular separation processes

Is Molecular Sieve 5A suitable for paraffin separation?

Yes. One of the most important uses of 5A molecular sieve is the separation of normal paraffins from iso-paraffins and cyclic hydrocarbons, especially in petrochemical applications.
